Sherry G3 (light ver.)

Featured picture : credit goes to gin.

– Name :  Sherry G3 (light ver.)

– Creator : Sherry

– Length :  19.7 cm

– Weight :  13.5 g (varies)

Insert : Yes

– Weblink : -Nil-

– Difficulty : Easy

– Stuff :

-1 Pilot G3 (Barrel) (any version is fine, the tip is not used here)
-2 or more Uni-ball Signo DX (Grips)
-1 Pilot G1 (Tip)
-1 Pilot Multi Ball (Cap)
-1 Ohto Metallic Gel (Tip)
-1 Platinum Gel Roller (Tip)
-1 Zebra Hyper Jell (Grip)
.

– Tutorial :

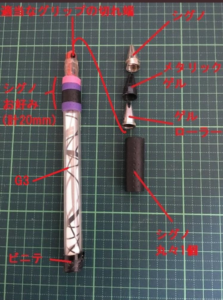

1- Clear your G3 front (remove grip, sand down small squares and front)

2- Cut approximately 2 cm worth of Signo DX grip and put it on the G3 front

3- Cut approximately 2 1 block sections of Signo DX grip, put one section over the other and put them in the front of the G3 barrel

4- Tip stack: Gel roller tip> Metallic Gel tip>Signo tip

5- Put the tip stack on the front of the G3 and cover it with a whole Signo DX grip

Diagram

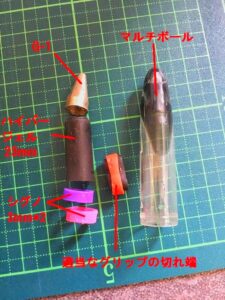

6- Cut the clip of the Multi Ball cap and remove the rubber stopper inside

7- Put the G1 tip into the cap, followed by a 2.7 cm section of Hyper Jell grip and two 3mm sections of Signo DX grip

8- Cut another two 1 block sections of Signo DX grip and put one section over the another, before putting them into the cap as shown

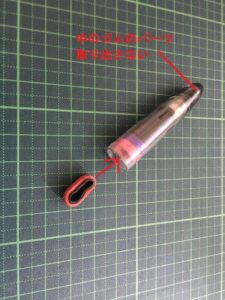

9- Add some vinyl tape to the back of the G3, add an insert into the G3 barrel, then attach the cap to the barrel

Complete!

– Comment :
A lighter variant of Sherry’s G3
