Timeless G3

Featured picture : credit goes to Timeless.

– Name : Timeless G3 mod

– Creator : Timeless

– Length :  20cm

– Weight :  12.32g

Insert : Yes

– Weblink : Timeless discord msg

– Difficulty : Medium

– Stuff :

– 1 Pilot G3(Barrel, Cap)
– 1 Pilot Frixion Colors(Cap)
– 2 Pentel Hybrid Gel Grip(Tips)
– 1 Zebra Hyper Jell (Grip)
– 1 Tsukineko Emboss Dual Pen (Old ver.) (Big cap)
– 1 Dong-a Anyball (Grip)
– 1 Dong-a Comssa (Barrel)
-1 Tombow Playcolor 2/K (Barrel)
-1 O-ring

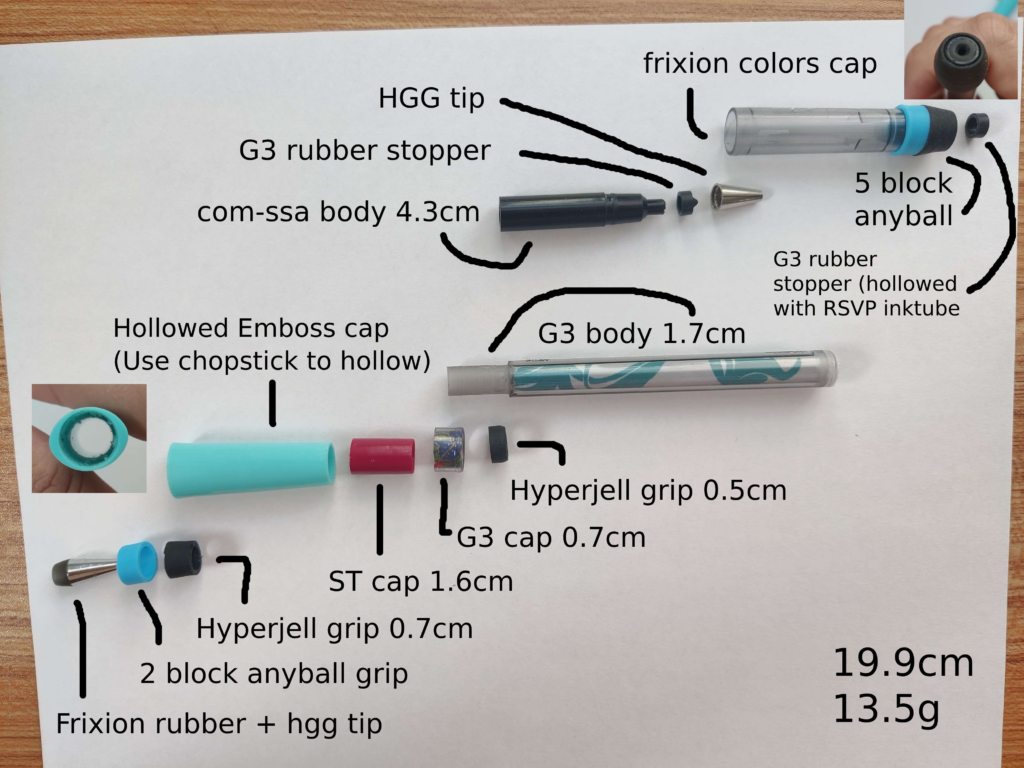

– Tutorial :

1- Clear your G3 (remove grip, inktube, sand down the front)

2- Cut the front of the G3 to 1.7 cm

3- Hollow out the big Emboss cap (BE CAREFUL SO YOU DONT CUT THE SIDE OF THE CAP)

4- Remove the rubber nub on the Frixion cap and put it inside the HGG tip

5- Cut your Hyper Jell grip to 0.7cm

6- Cut 2 blocks off your Anyball grip

7- Take your 2 blocks of Anyball , and put over the Hyper Jell grip

8- Put the Hyper Jell grip with Anyball  inside your Emboss cap, leaving one block exposed

9- Take Step 4 and put it inside the Hyper Jell grip (Frixion rubber nub facing out)

10- Cut your leftover Hyper Jell grip to 0.5 cm

11- Cut PC2 barrel to 1.6 cm, then sand it down until the Emboss cap fits over it

12- Cut the G3 cap to 0.7 cm from the front

13- Put the Hyper Jell grip onto the G3 front, followed by PC2 barrel, then place the cut G3 cap onto the PC2 barrel with an insert under it followed by the Emboss cap (HJ grip> PC2 barrel with G3 and Emboss cap)

14- Cut your Comssa barrel to 4.3 cm from the front (tip side)

15- Remove the plastic piece in the Frixion cap

16- Cut your Anyball grip to 4 blocks and put it on the Frixion cap

17- Put the HGG tip into the Frixion cap, followed by the Comssa barrel and an O-ring (HGG tip< Comssa barrel< O ring)

18- Put some tape on the back of the G3, put an insert into the G3 and attach the cap


– Comment :
There are praises for this G3 mod, seems like a nice mod

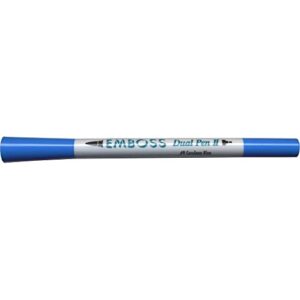

*Note that this is the variant of Emboss that is used for the cap
