400¥ G3

Featured picture : credit goes to Vôre-Tèx for the picture.

– Name : 400¥ G3

– Creator : Vôre-Tèx

– Length : 21 cm

– Weight : 14 g

Insert : Yes

– Weblink : Vôre-Tèx Twitter

– Difficulty : Easy

– Stuff :

– 1 plastic G3 (Barrel, tip, backcap)
– 1 Pentel e.ball (Grip, clicker)
– 1 Signo DX (Tip, grip)
– 1 Pilot Supergrip.G ( Cap, front barrel)
Stuff price : Around 4$ if you get the stuff in Japan. ~8$ otherwise.
.

– Tutorial :

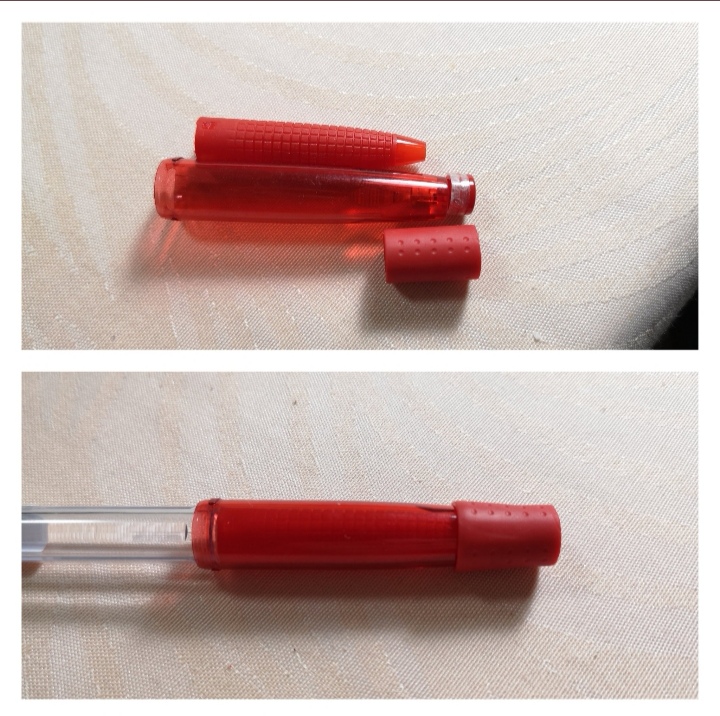

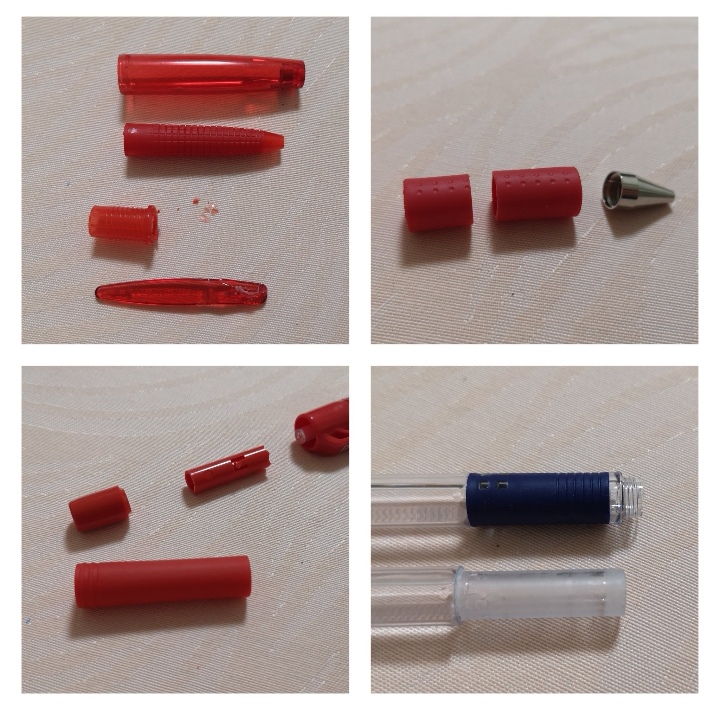

1- Remove the clip of the cap of supergrip.g
Cut the screw thread of the front of supergrip.g and remove the small bumps.

2- Cut the DX grip as shown.

3- Keep the clicker of the e.ball and cut it as shown. Keep the grip.

4- Prepare the G3 front barrel.

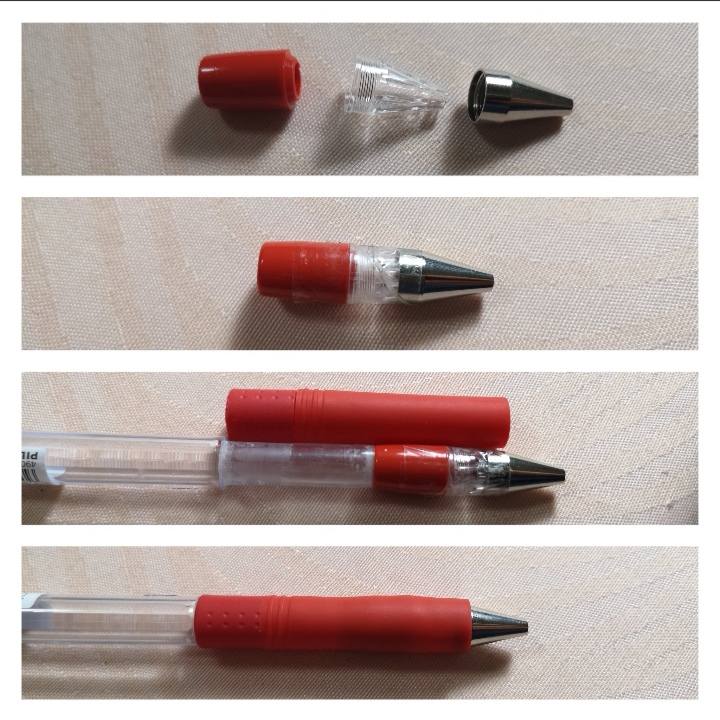

5- Attach e.ball clicker, G3 tip, signo tip with tape.

6- Add the DX grip and e.ball grip over G3 front barrel, with the tip stack.

7- Add the supergrip.g front barrel into its own cap.

8- Add the DX grip with the G3 backcap. Add some around of tape on it so it won’t fall down when you drop the pen.

4- Push the cap over the back of the G3.

– Comment :
I first made this mod just for fun, like a challenge, and tried to make the cheapest G3 mod I could while I was in Japan in summer 2018. I don’t know why I successed to make something not bad. Maybe the mod is a little bit too much long for some people, but it is easy to turn !
